Grandstream GXV3350 Smart IP Video Phone

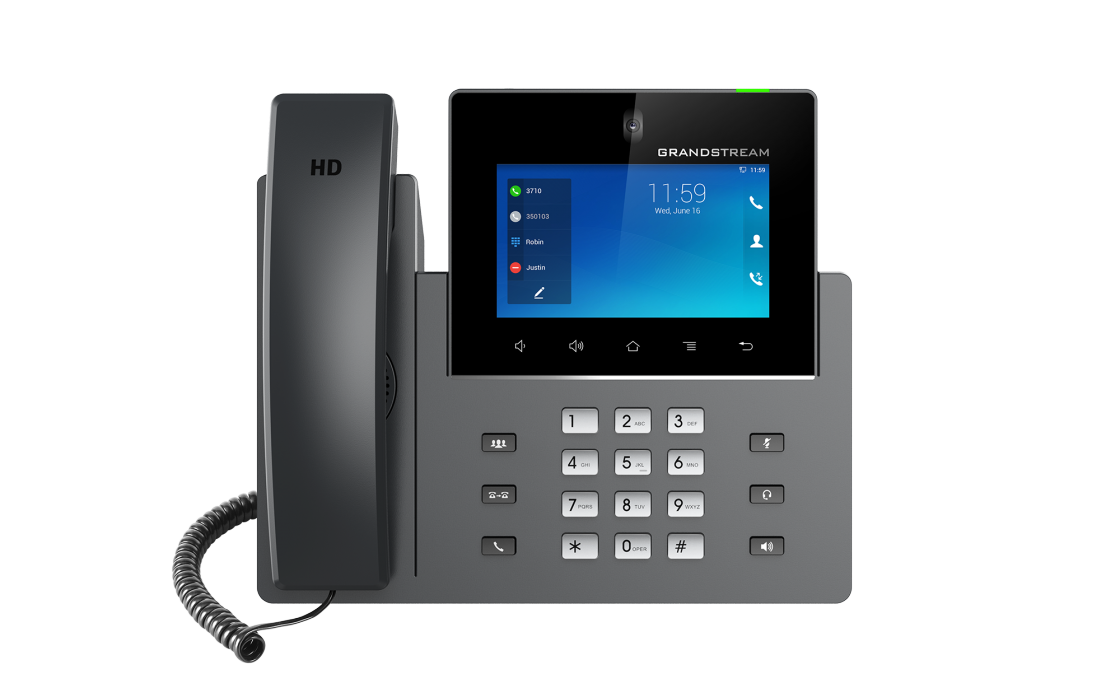

The Grandstream GXV3350 is an excellent choice for those in the market for a high-end IP video phone. It offers many features that are usually only found in separate devices, such as a 16-line IP video phone, a multi-platform video collaboration solution, and the functionality of an Android tablet. This makes it perfect for anyone who wants an all-in-one communications solution.
Grandstream GXV3350 Key Features
- Android Version 7.0
- Built-in 1 mega-pixel CMOS tiltable camera for video calling with privacy wheel
- 5.0” (1280×720) capacitive 5-point touch screen HD TFT LCD
- 6-way audio conferencing & 3-way 720p 30fps HD video conferencing capability
- Dual-switched auto-sensing 10/100/1000Mbps network ports
- Integrated dualband WiFi (2.4GHz & 5GHz)
- Built-in PoE/PoE+ for power and network connections
- Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headsets
- 16 SIP lines with up to 16 SIP accounts
- Dual-mic HD speakerphone with noise reduction, advanced echo cancellation & excellent doubletalk performance
- 4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM and 8GB eMMC Flash
- HDMIout, USB, headset jack, EHS
- Compatible with Bitvoice IP PBX
The GXV3350 IP video phone is a powerful device with a 5 inch 1280×720 capacitive touch screen, tiltable camera, HDMI output, dual microphones and support for 720p HD video. Additionally, it has dual Gigabit ports with PoE/PoE+, integrated WiFi and Bluetooth support. It also runs Android 7.0 and offers instant access to hundreds of thousands of Android apps.
The Grandstream GXV3350 is an excellent choice for those in the market for a high-end IP video phone. It offers many features that are usually only found in separate devices, such as a 16-line IP video phone, a multi-platform video collaboration solution, and the functionality of an Android tablet. This makes it perfect for anyone who wants an all-in-one communications solution.
Grandstream GXV3350 Technical Specifications
Protocols/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®
Network Interfaces
- Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+
Bluetooth
- Yes, integrated Bluetooth 4.2 + EDR
WiFi
- Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n
Graphic Display
- 5.0 inch 1280×720 capacitive touch screen (5 points) HD TFT LCD
Camera
- Built-in 1 mega-pixel CMOS tiltable camera with privacy wheel, 720p 30fps
Auxiliary Ports
- RJ9 headset jack (allowing EHS with Plantronics headsets), extension module port, USB port, HDMI-out (1.4 up to 720p30fps)
Feature Keys
- 11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU, and BACK
Voice Codecs and Capabilities
- Wide-band Opus, wide-band G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Codecs and Capabilities
- H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, auto focus and auto exposure
Telephony Features
- Hold,
- Transfer
- Forward (unconditional/no-answer/busy),
- Call park/pickup, 6-way audio
- Conference(including the host)
- Shared-call-appearance (SCA) / bridged-line-appearance (BLA)
- Programmable key
- Downloadable contacts (XML, LDAP, up to 1000 items)
- Call record(local and server)
- Call log (up to 1000 records)
- Call waiting
- Auto answer
- XML customization of screen
- Click-to-dial
- Flexible dial plan
- Hot desking
- Personalised music ringtones and music on hold
- Server redundancy & fail-over
Sample Applications
- Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser,Voicemail, Calculator, Clock, Recorder, GS Market, etc.
- Supports third-party Android apps
- API/SDK available for advanced custom application development
Android
- Runs Android 7.0
Applications Deployment
- Supports Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control
HD Audio
- Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio
Base Stand
- Yes, base stand with three adjustable levels
QoS
- Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- User and administrator level passwords, MD5 and MD5-sess based authentication, 256bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language
- English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more
Upgrade/Provisioning
- Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using R-069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
- Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
Temperature and Humidity
- Operation: 0°C to 40°C, Storage: -10°C to 60°C,
- Humidity: 10% to 90% Non-condensing
Package Content
- GXV3350 phone, handset with cord, base stand, universal power supply, network cable, quick installation guide, GPL license
